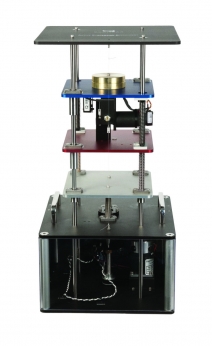

Active Suspension
Active Suspension

Active Suspension

Thuế:
Giá trên đã bao gồm thuế VAT
Tình trạng:
Còn hàng
Price:
VND Included VAT
Hoang Quoc Co.,Ltd

Add:  No.7, Lot 5B, Trung Yen New, Cau Giay District, Hanoi City, Vietnam
ĐT      : (84-4)   3831 7421
Fax    : (84-4)  3831 7433
Email : Hoangquoc@hoangquoc.com
 The Active Suspension experiment teaches cutting-edge technology that has brought a new generation of vehicles to life. Active suspension technology is used in the automotive industry to continuously control the vertical movement of the vechicle wheel using an actively-controlled actuator placed on the suspension axis. Similar technologies have also been used in train bogies to improve the curving behavior of the train and the decreased acceleration perceived by the passenger.

Curriculum:

  • Double mass, spring, damper system analysis
  • Industry-relevant control requirements (ride comfort, suspension travel, road handling)
  • Derivation of dynamic model
  • Finding system state space representation
  • Finding system transfer function model
  • Open-loop system analysis using sweep/chirp signal
  • State-feedback control using LQR
  • Closed-loop state-feedback system simulation
  • Implementation of the LQR-based state-feedback control on the Active Suspension system

Specification:

  • Dimensions (W x L x H): 30.5 cm x 30.5 cm x 61 cm
  • Total mass: 15 kg
  • Range of motion: ± 22 mm (road), ±19 mm (tire), ± 25.4 mm (car)
  • Position resolution: 0.002 mm/count (road), 0.005 mm/count (tire), 0.009 mm (car)
  • Stiffness: adjustable from 0.4 to 2 N/mm
  • Excitation frequency: up to 15 Hz
  • Resonant frequency: configurable between 2 to 6 Hz
  • Accelerometer sensitivity: 9.81 m/Vs²
