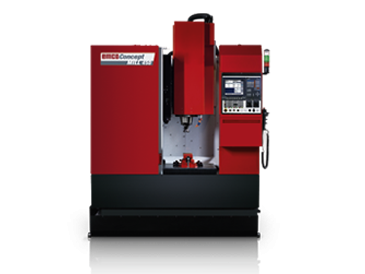

CONCEPT MILL 450

  Experience machining without an equal. The Concept MILL 450 is a complete production machine for CNC milling training:
with fixed 20-station tool magazine, a rapid twin-arm changer, a 11 kW and 12000 rpm main spindle, 24 m/min rapid speeds and
the EMCO WinNC control, the concept of the interchangeable control.

 Work area
Travel in X longitudinal: 600 mm ( 23.6")
Travel in Y latitudinal: 500 mm (19.7")
Travel in Z vertical: 500 mm (19.7")
Min. clearance spindle nose – table: 100 mm (3.9")
Max. clearance spindle nose – table: 600 mm ( 23.6")

Table
Clamping area: 700 x 520 mm (27.6 x 20.5“)
T slots: number, width, spacing: 5 x 18 x 100 mm (0.2 x 0.7 x 4.9")
Max. table load: 500 kg (1102.3 lb)
Distance table – floor: 786 mm (30.9")

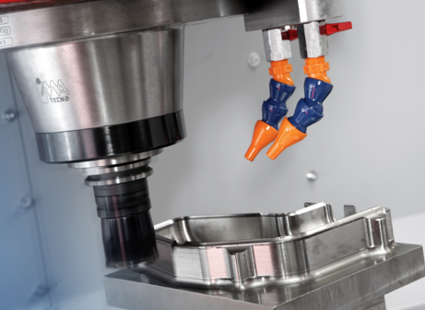

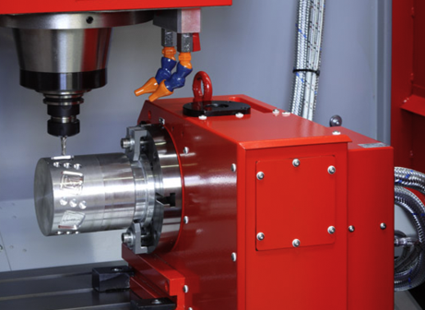

Milling spindle
Speed range: 50 – 12000 r.p.m.
Motor power: 11 kW (S6) (14.7 hp) (S6)
Torque (Siemens): 70 Nm (S6) (51.6 ft/lbs)
Tool taper DIN69871: ISO 40
Drive: Direct drive

Axes
Rapid speeds X, Y, Z: 24 m/min (944.9 ipm)
Feed rate X, Y, Z: 10 m/min (393.7 ipm)
Axis acceleration X, Y, Z: 2 m/s2 (50.8''/s2)
Feed force X, Y, Z: 5000 N (1124 lbs)

Precision
Positioning: accuracy
over entire X, Y, Z stroke range: ± 8 μm
Positioning repeatability X, Y, Z: ± 8 μm

Tool system
Number of tool stations: 20
Tool administration: Fixed
Max. tool diameter
(excluding adjacent tools): 80 mm (125 mm) (3.1") (4.9")
Max. tool length: 250 mm (9.8”)
Max. tool weight: 8 kg (17.6 lb)
Tool changing time (tool/tool) approx. 8.2 s

General data
Power supply: 20 kVA
Dimensions W x D x H: 2040 x 2445 x 2920 mm
(80.3 x 96.3 x 114.9”)
Weight: 4000 kg (8818.4 lb)
Compressed air: 6 bar

EMCO WinNC Controls
Sinumerik 810D/840D: Heidenhain TNC 426
Sinumerik 820: Sinumerik 810
Sinumerik Operate: GE FANUC Series 0
GE FANUC Series 21: EMCOTRONIC TM02
Fagor 8055 MC
