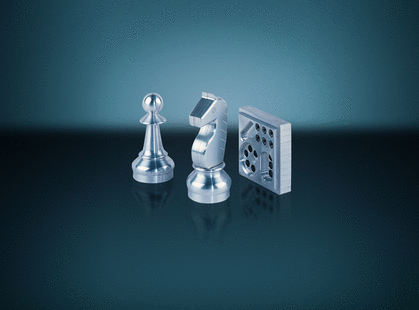

Concept Mill 55

PC-controlled 3-axis Milling Machine for universal CNC Training

Equipment

Up to 9 CNC controls on 1 machine applicable

Infinitely adjustable main drive

Automatic 8 station tool turret

High-resolution axis motors

Electromechanical tailstock

Robotic interface for integration into FFS/CIM systems

Highlights

• Stable gray cast iron construction
• Clockwise/anticlockwise spindle rotation
• Infinitely variable main drive
• CNC 3D continuous path control
• Automatically reference points
• EMCO EASY CYCLE control integrated - "on machine"

Concept Mill 55

Work area

Travel in X/Y/Z: 190/140/260 mm
Distance spindle nose: 77 - 337 mm
Number of axes: 3rd (4th axis optionally)
Rapid motion speeds in X/Y/Z: 2 m/min
Work feed X/Y/Z: 0-2 m/min
Feed force in X/Y/Z: 800/800/1000 N
Clamping area: 420 x 125 mm
Max. table load: 10 kg

Milling spindle

Tool holder: EMCO similar SK30
Number of tools: 8
Max. speed: 3500 rpm
Max. drive power: 0.75 kW
Max. torque: 3.7 Nm

General data

Dimensions (LxWxH): 980 x 960 x 1000 mm
Machine weight: 220 kg
